 ### Orbit

version 1.0
© 2003 Bernard Schutz

## Description of Orbit

The unit called Orbit implements the Java program for computing the orbit of a planet or satellite about a central mass. It allows us to demonstrate that bound orbits are closed ellipses, something that would require advanced calculus if we restricted ourselves to pen-and-paper calculations. The program also  allows the user to make several choices, so that the output can give different views of a system or represent many different physical systems. This allows us to test Newton's theory of gravity by simulating the orbits of all the planets and comparing the resulting shapes and periods with observed data.

The user can choose the mass of the central object, the starting position and velocity of the satellite, the basic time-step for advancing the orbit step-by-step, and the maximum number of time-steps. If the orbit is bound, the program will end after it computes a single orbit, provided the maximum number of steps has not been reached. If the orbit is not bound, so that the satellite flies away, then the program will end only after the maximum number of steps has been reached. The mathematics for this is essentially the same as for the program EarthOrbit, and is described in Investigation 4.1.

In addition the user can choose two numbers that regulate the accuracy of the calculation. They are used by two new numerical techniques that are introduced in this program: an adjustable time-step, and the so-called predictor-corrector iteration for improving the accuracy of each time-step. (Users can control these accuracy-improving techniques without having to know the details of how they are implemented. Users who want to know the details will find them described in Investigation 4.2 and below.) Finally, the user can choose several kinds of data to output, so that detailed investigations of the results are possible. For example, by outputting the position as a function of time, the user can find out the period of the orbit. The user can also output measures of energy, to verify the law of conservation of energy, as described in Chapter 6.

Users can experiment with the accuracy and the initial conditions to verify the theorem that bound orbits are ellipses, while unbound orbits are hyperbolas. They can also choose initial conditions to simulate different kinds of systems. The initial data provided by default with the program simulates the orbital motion of Mercury around the Sun. By changing the data, users could look at the Moon going around the Earth, or comets around the Sun.

Orbit is the foundation program for all of our later explorations of motion in this book. The programs that solve for the motion of two stars in a binary system, that examine the three-body problem and show how stars are expelled from such systems, that calculate orbits around black holes, and that study the expansion of the Universe after the Big Bang are all relatively straightforward modifications of Orbit. If you master this program you will open the door to learning about a huge variety of physical systems.

## Using Orbit

Simply drag the Orbit icon from the toolbox into the working area, drag the SGTGrapher unit into the area, and connect the two if Triana has not already done so. If you press the Start button then the program will execute with its default settings, producing a simulation of the orbital motion of Mercury around the Sun that is sufficiently accurate to see that the orbit is a closed ellipse when the data are displayed by the graph window that pops up automatically.

Initially the graph window will adjust its scales to the orbit of Mercury. To get a plot that shows the orbit correctly, go to the "Plot" menu of the SGTGrapher display, and select "force equal ranges on both axes", then press "Reset Zoom".  This ensures that the x- and y- axes are scaled in the same way. Optionally, if you find the axis labels difficult to read, you can select "take out common factors of 10 from data" for a less cluttered display. You will have to re-run the computation to get the display to change. If you choose output options (below) that don't require the scales to be the same, then un-select this option in the "Plot" menu. You can change ten parameters by opening the parameter window: double-click on the unit's icon when it is in the working area to get a window like the one shown to the left. The orbit parameters have default values for Mercury's orbit around the Sun. The first two lines set the x- and y-positions of the starting point, in meters from the location of the central mass. The third and fourth lines give the components of the initial velocity of the body, in ms-1. The fifth line is the mass of the central body in kg (default is the mass of the Sun). The sixth line gives the initial time-step. The value of this is not critical, since it will be reduced if accuracy requires it. But don't set it too small, since it won't be increased by the program, and if it is too small you will have to wait for a long time for the answer. The seventh line gives the maximum number of time-steps in the calculation. This will stop the calculation if the orbit is not closed or if this number of steps is reached before it closes. You should experiment with changes in this. The eighth line gives the error allowed for the time-step reduction. If the fractional change in a component of the acceleration has this size, then the time-step will be reduced. The default value, 0.05, is fairly large. You should experiment with reducing it. The ninth line sets the allowed error for the predictor-corrector, which ensures that the change in the acceleration over the time-step is calculated accurately. Again you should experiment with changes in this. The final line is a choice box which allows you to choose the kind of information that will be output. This is a more advanced option and is designed, among other things, to help you in later chapters in the book. When the program is first introduced, in Chapter 4, you will only really need the default output option, but in Chapter 6 you will need more. The list of choices is shown here.

• The first choice, the default, is to output the orbit. This is a data set that, when graphed, will show the x-y plane of the orbit and a curve showing where the planet has gone. It does not include information about the time it takes to move from one place to another.
• The second option, "velocity space...", shows a graph of the two components of velocity, V (the x-velocity) and U (the y-velocity), and a curve tracing the values of the velocity that the planet had in its orbit. This graph shows no time or position information.
• To get information about how things change with time, select the third option ("position vs time ...") or the fourth ("velocity vs time ..."). These output two data sets, and to do this the Triana unit changes its number of output nodes so that you can route these outputs as desired. If you graph the data coming out of the first output node you will see the graph of x-position (or x-velocity) against time along the orbit. If you graph the second you will see the corresponding y-information against time. You can create two grapher units, and connect each output to its own grapher; this will display two separate graph windows. Alternatively, you can create a single grapher unit and give it two input nodes (hover the mouse near the input node and click on the little "+" sign that comes up: you will add another node); by connecting both outputs to these two nodes you will see both graphs on the same chart. (Be sure to un-select the option "force equal ranges on both axes" in the "Plot" menu, since in these display option there is no relation between the two axes.)
• The fifth option outputs the potential energy, kinetic energy, and total energy as functions of time. Energy is introduced and discussed in Chapter 6. The unit requires 3 output nodes to produce this data, and so when you select this option it automatically changes to do this. Again, you can use separate graphing windows or a single one to see the results. What is actually output is the energy divided by the mass of the planet, since we have not had to specify the mass of the planet for any of the calculations of the orbit here.

## Suggestions for playing with Orbit

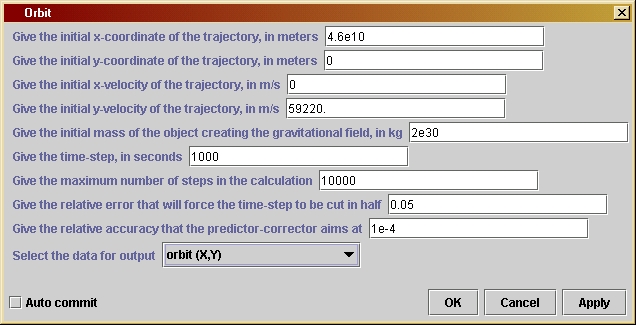

The parameter window allows you a lot of choice about how to start up the orbit. You can vary the data there to create different kinds of orbits and you can choose different kinds of output to look at different information about the orbits. Here are some suggestions.
1. Planetary orbits. The initial data that the program starts with duplicates the orbit of Mercury. The information in Table 4.3 in the book is enough to help you construct the orbits of the other planets. Just start them off, as with Mercury, at a distance along the x-axis given by their perihelion distance (second column of the table), and give them a velocity directed only in the y-direction equal to their maximum speed (third column). Then, from the geometry of the output orbit, try to calculate the eccentricity and compare it with the values given in the first column of the table, using the formula for eccentricity given in the caption for the table. Each of these comparisons is a test of the validity of Newton's law of gravitation: a different law of gravity would not be expected to give the same orbital shape as Newton's law for the same initial conditions.
2. Planetary orbital periods. For the planetary orbits you computed in the previous suggestion, you can also get an estimate of the period of the orbit if you choose to output "position vs time" or "velocity vs time" in the choice box that is the last option in the parameter window. The horizontal axis of the plots will be time along the orbit, and the period is the time elapsed from the beginning to the end. You can compare this with the planetary periods given in Table 4.2 of the book. Again, each comparison is a test of the validity of Newton's law of gravity.
3. Orbits are periodic in velocity, too. You can see from the output of the first run of the program that the orbit of a planet is closed. But for the planet to repeat the same orbit over and over again requires in addition that the velocity of the planet at the end of one orbit should be the same as its starting velocity. Otherwise it will go off on a different path even if it returns to the same point. To see that the velocity also repeats, select the output option "velocity space" from the output choice box. This will plot, on axes v and u (the x- and y-components of the velocity), the values of the velocity as the planet goes around its orbit. This curve is closed, just like the orbit is closed. This demonstrates the the next orbit will again follow exactly the same path as the first. If you limit the number of steps in the calculation so that it does not perform a full orbit (by decreasing the number in the option in the parameter window for the maximum number of steps), then you can see where the orbit starts out and also see that this is the place where the speed is highest.
4. Unbound orbits.The initial data that the program starts with generates a bound orbit, that is an orbit that remains within a finite distance of the central mass. You should experiment by changing the initial speed or starting point to achieve an unbound orbit, one that simply moves further and further away. Such an orbit describes a hyperbola. By performing many experiments you may be able to find the approximate speed of the marginal case, which describes a parabola.  Comets move on orbits that are nearly parabolic. You can also experiment with the initial conditions to verify another remarkable fact: whether an orbit is bound or not depends only on two things, its starting distance from the central mass and its starting speed, but not on the direction of the initial speed. The orbital shape changes if you change the direction without changing the speed, but whether it is bound or not is independent of the direction. Experiment by changing the components of the initial velocity while keeping the sum of their squares the same.
5. Energy conservation. The property we have just described, that the boundedness of an orbit is independent of the direction of the initial velocity, is closely related to the fact that the total energy of a body is constant along the orbit. The energy of a body in a gravitational field is defined in Chapter 6. Once you have read that chapter, you should run some of the simulations you ran before, only this time output "energy vs time". This gives you three curves, consisting of the kinetic, potential, and total energy. The total energy (the sum of the other two) should be constant in time. This is the law of conservation of energy for an orbit around a central mass. Now compare the total energy of a bound orbit with that of an unbound orbit. You will see that the bound orbit has a negative total energy and the unbound a positive. This is a general rule: bound orbits have negative total energy. The marginal, parabolic orbit has zero total energy. Since the energy does not depend on the direction of the velocity, this re-inforces the observation in the previous suggested experiment about directions of velocity.

## Understanding Orbit

The Orbit program allows you to solve Newton's laws for the motion of planets in the gravitational field of a central mass. It goes beyond the program EarthOrbit by using Newton's law of gravitation, allowing the gravitational force to depend on the radial distance r as 1/r2. It also introduces two new computational techniques, an adjustable time-step and the predictor-corrector method. Finally, it uses angular computations to find out if the orbit has closed, i.e. if the planet has gone once around the central mass. We examine each of these new features in turn.
1. Newton's law of gravitation. The acceleration of gravity of a planet, due to the gravitational field of a body of mass M located at the origin of the coordinate system, is -GM/r2, where r is the radial distance from the origin to the planet and G is Newton's gravitational constant. The program introduces the constant k for the product GM, so that the acceleration is -k/r2. This replaces the constant acceleration of gravity g used in EarthOrbit, so that EarthOrbit's x-acceleration -gx/r is replaced by -kx/r3, and similarly for y. The mathematics is described in Investigation 4.1.
2. Changing the time-step. We have shown in the book that the results of the computer program can be made as accurate as one wants by choosing a small enough time-step. The key point is that our method would be exact if the acceleration did not change during the time-step, but because the position of the planet changes, there is an inevitable change in the acceleration. But if the change in position is sufficiently small, the error we make by assuming a constant acceleration can be made as small as we wish. The problem with this is that computer calculations take time, so shortening the time-step by too much would make a calculation very expensive of computer resources and your own time! Therefore here we take a middle road: we start with a fairly long time-step but allow the program to decide if it is too large at any particular step around the orbit; if so, the program starts the current step again with the time-step cut in half, and checks again to see if it is still too large. This can go on repeatedly until the time-step is small enough to guarantee sufficient accuracy. The program defines a variable dt0 that holds the initial time-step given by the user, but it actually uses a variable dt1 as the time-step during the computation. It sets dt1 = dt0 at the beginning and then reduces dt1 if necessary.

3. The computer must be told, of course, what accuracy you want. The program's parameter window allows you to tell it the accuracy limit by giving a dimensionless number which is a measure of the relative error you can tolerate in assuming a constant acceleration. This number is stored in the variable eps1. The relative error is just the fractional change in the acceleration during the time-step. Of course, until we calculate the orbit accurately, we won't know where the planet is at the end of the time-step, so we can't exactly calculate the acceleration at that time. But we can get a fairly good idea of its size by just pretending the planet moves according to a constant acceleration given by the acceleration at the beginning of the current time-step. These acceleration components are called ax0 and ay0 in the program.

If the acceleration ax is constant, then the x-velocity of the planet changes in a time Dt by the amount Dv = ax Dt. This is stored in the variable dv. The x-position changes with a velocity that is the average of the beginning x-velocity v and the ending x-velocity v + Dv. This average is v + Dv/2, so the change in position is
Dx = vDt + (Dv/2)Dt.
The program defines two new variables to hold the values of the two terms in this expression: dx holds vDt (computed as v*dt1) and ddx0 holds (Dv/2)Dt (computed as dv/2*dt1). Notice that dx is independent of the acceleration, but the accuracy of ddx0 depends on the accuracy of the acceleration, which affects dv. Therefore the program also defines a variable ddx1, which it later uses to hold an improved value of this term in the predictor-corrector step. All of this is done in the same way for y as well as x.

The measure of accuracy that influences the time-step is not particularly sophisticated. The change in acceleration is computed by finding the acceleration at the new position ( x1,y1), where x1 holds the value of x + Dx as above, and similarly for y. This acceleration is stored in (ax1,ay1). The change in the x-acceleration, ax1-ax0, should not be too large. Nor should the change ay1-ay0. The program simply computes the sum of the absolute values of the changes,
Math.abs(ax1-ax0) + Math.abs(ay1-ay0),
and compares it with the sum of the absolute values of the acceleration components at the beginning of the time-step,
Math.abs(ax0) + Math.abs(ay0).
If the change is larger than the number eps1 times the original, then the time-step is halved and the whole step is done again. Thus, the code has an if statement with the test
Math.abs(ax1-ax0)+Math.abs(ay1-ay0) > eps1*(Math.abs(ax0)+Math.abs(ay0))
This test is not the only test one could use, but it is important to remember that the test is only used to shorten the time-step; the values computed for the test are not used in the computation of the orbit of the planet. One could use the squares of the quantities instead of their absolute values, for example, and the result would not be very different. The important thing is to choose the value of eps1 small enough that the test will reduce the time-step before errors begin to creep into the calculation.

If you want to see what happens without a time-step correction, you don't need to change the program. Just set eps1 to some large value, like 10. Then the test will never be satisfied and the time-step will never be changed.

4. Predictor-corrrector. We could rely on smaller and smaller time-steps to get better accuracy, but there are other ways to improve the accuracy of a given time-step, and they are often more efficient, in that they give an accurate result in a shorter time. One such technique is the predictor-corrector method. It is a powerful concept, which can be used in a wide variety of situations. We introduce it here because the problem of planetary motion allows us to illustrate the method in a simple way. See Investigation 4.2 for an introduction.

5. The predictor-corrector method addresses the problem we mentioned above, that the acceleration at the end of a time-step must be known so that we can accurately calculate the change in velocity and from the that change in position, but the acceleration can't be known until we know what the change in the position is, since the acceleration depends on position. This is a kind of chicken-and-egg problem, and the predictor-corrector method is perfect for solving it. The idea is to find a series of successively more accurate approximations to the final position. The method performs an iteration, which is the mathematical word to describe doing the same thing over and over again. Under normal circumstances, this iteration should produce a result that converges to the correct position.

Note that all we want to improve is our value for what we call ddx = (Dv/2)Dt and ddy=(Du/2)Dt. We start out with our first approximation, which is the one we used above to find (x1,y1) using the acceleration at the beginning of the time-step to find Dv. Having found our approximation to the new position, we then use this to find the acceleration at the end of the time-step, which is stored in (ax1,ay1), as described above. Now we are ready to start the iteration.

First we use the beginning and ending accelerations to compute a better value for the change in speed (Dv,Du) by averaging the acceleration. For example, the program contains the following statement for the x-velocity change:
dv = (ax0 + ax1)/2*dt1;
The next step is to compute a better value for ddx, which we store in the variable ddx1:
ddx1 = dv/2*dt1;
This and the better value of ddy stored in ddy1 are tested to see if they are very different from the values held in ddx0 and ddy0. If they are then the iteration repeats. If not, then we assume that we have converged well enough on the right value of the position and the iteration stops. Each of these steps -- the test, the repeat, the exit -- needs to be discussed a little.

The test is similar to the test we used for the time-step adjustment. There is an if statement with the test
Math.abs(ddx1-ddx0) + Math.abs(ddy1-ddy0) > eps2 * testPrediction
where the value of testPrediction was computed just before the predictor-corrector iteration:
testPrediction = Math.abs(ddx0) + Math.abs(ddy0);
This holds the original size of ddx. The test above says that if the change in the estimate of ddx is larger than the small number eps2 times the original, then the iteration will continue. It will stop only if the change in the estimated value of ddx during the last iteration is sufficiently small.

If the iteration repeats, then the program stores the most recently computed values of ddx1 and ddy1 into the variables ddx0 and ddy0. That ensures that when the test is applied again, after new values of ddx1 and ddy1 have been computed, the changes that are used in the test, like ddx1-ddx0, are indeed the changes in the most recently computed approximations to ddx. To complete the preparations for the next iteration, the position is updated and the acceleration at the new position is computed.

To exit from the iteration, we just use the break statement, which ensures that the next statement to be executed is the one following the loop. This one uses the previously computed values of ddx and ddy (since they are now known to be good enough) to move the planet to the beginning of the next time-step, finds the acceleration there, and stores the resulting position in the arrays used to keep position information. Then, if the orbit has not yet closed, the computer goes on to the next time-step.

Notice that we have coded the predictor-corrector with a for loop that has 10 steps (with index k counting the steps). Even if the predictor-corrector has not converged, we exit the loop after 10 iterations. This is a safety measure: if the program has not converged by 10 steps, it may well never converge. We don't want the program to loop around forever waiting for convergence.

As for the time-step changer, f you want to see what happens without the predictor-corrector, you don't need to change the program. Just set eps2 to some large value, like 10. Then the test will never be satisfied and the predictor-corrector iteration will not take place.

It is important to understand what the predictor-corrector does and does not accomplish. Its only purpose is to get the best possible value for the position at the end of the time-step, within the finite-difference approximation, i.e. within the approximation that the position advances by the average velocity during the time-step and the velocity changes by the average acceleration. The predictor-corrector does not do better than this approximation, and so if the acceleration were constant the predictor-corrector would not improve things further. If the time-step is too large, for example, the predictor-corrector will not cure that problem. Therefore, the two kinds of accuracy improvements that we have implemented in this program are complementary; they act at different places in the calculation.

6. Closed orbit.  One of the most remarkable things about orbits in Newtonian gravity is that planetary orbits close, which means that when the planet has gone exactly once around the central mass, it returns to the same radial distance and has the same velocity as when it started. This ensures that the orbit goes over and over again on the same path, even if it is an elliptical orbit. We therefore stop the orbit calculation when the orbit has gone around once, provided it has not already been stopped because it exceeded the maximum allowed number of time-steps chosen by the user. Notice that, since the time-step can be reduced, one cannot be sure how many time-steps will be required to go once around. So the test for completing the orbit is a more sensible one.

7. It is surprisingly complex to decide when the orbit has gone around once. Since the intial position and velocity can be freely chosen by the user, we must cope with orbits that go clockwise or counter-clockwise, and with orbits that start on the x-axis, the y-axis, or within any quadrant. The way we implement the test in this program is to compute the angular position of the starting point, then monitor the angular position of the orbit at every subsequent time-step, and stop the calculation when the orbit comes back to the starting angle. Each of these simple ideas needs to be implemented carefully.

Computing an angle is itself not a trivial matter, because angles are not uniquely defined. If an angle has a value a, then the same angle could be represented by a+2p or by a-2p. Mathematical functions that compute angles have to return a unique value, which might be 2p or 4p away from the value we want to compare it with. So we must always be careful about this ambiguity. The best way to compute the angle in Java is to use the function Math.atan2, which takes two arguments, say a and b, and returns the polar angle of the point (b,a) in the x-y plane, i.e. the angle between the x-axis and the radial line from the origin to the point (b,a). (Be careful about the order of the arguments in the function: the y-argument comes first!) By convention, this value is between -p and +p.

Now, in the program we compute the intial angular position and assign it to the variable angleInitPos:
double angleInitPos = Math.atan2(yInit, xInit);
The arguments are the variables that hold the initial location of the planet, with the y-position first as noted above. Suppose, for simplicity, that the orbit starts in the first quadrant, or on the x-axis, and moves counter-clockwise, i.e. in the direction of increasing angular position. At each time-step we calculate the current angular position, which is held in the variable angleNow. What is the difference in the angles? At first, the difference will be simply angleNow-angleInitPos, but at some point the orbit will go into the third quadrant and the value of angleNow will be somewhere between -p and 0. Taking the difference angleNow-angleInitPos will now not give the right angular difference. Instead, we will have to add 2p to angleNow  to get the "right" angular position now. The way we cope with this problem in the present program is to ensure that the angular difference in the orbit is itself confined in the range between -p and +p. We test it to see if it goes outside this range, and if it does we add or subtract 2p as necessary to restore it to this range.

It is then a relatively simple matter to decide if the orbit has returned to the beginning. If the orbit is counter-clockwise, we just look for the point where this angular difference becomes positive again: as the orbit approaches its starting point, it does so from negative angular differences. If the orbit is clockwise, we look for the angular difference to become negative again.

The word "again" hides a further complication we need to consider: of course, at the very beginning the angular difference was also positive for counter-clockwise orbits and negative for clockwise ones. We don't want the program to stop after the first time-step, so we must prevent it from applying the test for closure until after the orbit has gone more than half-way around. The half-way point is exactly where the sign of the angular difference changes (for clockwise orbits, the angular difference is positive at first but becomes negative -- because we subtract 2p -- after the half-way point).

Finally, how do we know if the orbit is clockwise or counter-clockwise? We check for that in the very beginning by looking at the initial velocity of the planet as well as its position. If the velocity vector makes an angle that is positive with respect to the position angle, then the orbit will move off in the positive direction, and the orbit will be counter-clockwise.

The program uses several boolean variables to keep track of the conditions that we have just met. It defines counterclockwise, which is true if the orbit is counter-clockwise and false otherwise. It defines halfOrbit to keep track if the orbit has gone half-way; this starts out with the value false and is set to true when the test for completing half an orbit, mentioned above, is satisfied. This test, of course, depends on the value of counterclockwise. And the test can only be applied if the orbit has not yet gone half-way. Therefore the program contains the following code near the end of each time-step:
if (!halfOrbit) {
if (counterclockwise) halfOrbit = (anglediff < 0);
else halfOrbit = (anglediff > 0);
}
This is executed only if we are not yet halfway. When it is executed, then for a counterclockwise orbit the value of halfOrbit is set to the value of the boolean expression (anglediff < 0). This expression uses the conditional operator < (less-than). If anglediff is less than 0 then it evaluates to true and the statement then sets the value of halfOrbit to true. For clockwise orbits the third line above is executed, changing halfOrbit to true if the angular difference has become positive.

The third boolean is fullOrbit, which is false at first and is set to true when we pass the test for a full orbit. This test is implemented as the else clause of the if statement given just above, which ensures that we only test for a full orbit if we have already gone halfway around:
else {
if ( counterclockwise ) fullOrbit = (anglediff > 0);
else fullOrbit = fullOrbit = (anglediff < 0);
}
The test has the same kind of structure as above, but now the conditions are arranged so that they test for a full orbit. Once fullOrbit is true, the loop over time-steps finishes.

## Suggested modifications of Orbit

The program Orbit is already longer and more involved than its predecessor, EarthOrbit. Nevertheless, you may want to consider implementing some further changes to make it more efficient or more robust. Here are some suggestions:
• Notice that the value of dt1 is always used for the time-step. Thus, when the time-step is cut in half, the next step uses this smaller value from the start. This is good in one way: it is quite likely that two successive time-steps will need to be similar in size for the same accuracy, since the acceleration will not change much from one step to the next. But in the long run this can be inefficient. There may be a region of the orbit where small time-steps are needed, but then later in the orbit the time-step could be made larger. This would happen, for example, in computing the orbit of a comet that comes very close to the Sun; near the Sun one might need a small time-step because the changes in the orbit are rapid. But before and after the time of closest approach one could do with a longer step. You should try to think of a test for lengthening the time-step in addition to our test for shortening it.
• The program stops if the orbit goes once around, but you may want explicitly to test how accurately the second orbit falls on the first. Change the test so that the orbit goes around 1.5 times, or 2 times. You may need to implement another boolean variable or a counter of orbits.
• Change the accuracy tests to use the sums of the squares of the differences, compared to the sums of the squares of the original values. Does this make any noticeable difference in the accuracy of the orbits you compute?
• The predictor-corrector is implemented using the loop with index k. Implement this in a different way that ensures that the predictor-corrector keeps going until it reaches its desired accuracy, even if this takes more than 10 steps. To prevent the loop going on without stopping, implement a test to stop it if the predictor-corrector is actually making the calculation less accurate!
• Change the way the program decides whether the orbit is clockwise or counter-clockwise. Instead of looking at the initial velocity, wait until after the first time-step and see in which direction the orbit has moved. Fix the value of the boolean variable counterclockwise only after this first time-step.
• Check what happens if the user gives an initial velocity that is directed exactly radially inwards. In this case, the orbit is neither clockwise nor counter-clockwise, and it threatens to reach the origin, where the acceleration will be infinite. Do some examples with suitably chosen initial data, see what goes wrong, and make changes in the program to cope better with this case.
• The next suggestion is more ambitious but very informative. You could modify the Newtonian law of gravity to see what the effects would be of different laws. There is a mathematical theorem that says that all orbits will be closed only if the central mass exerts a force on the orbiting body that depends on distance either as 1/r2 or as r. The first law is Newton's law of gravity, and the second is Hooke's law for the spring. It would apply to a body connected to the central mass by a spring that pivots about the center with no friction.

• You could implement Hooke's law by changing the code for the acceleration. For example, before the for loop, there is at present the code
double ax0 = -kGravity*x0/r3;
double ay0 = -kGravity*y0/r3;
This computes the acceleration by multiplying the Newtonian law k/r2 by the appropriate fraction x/r or y/r to get the components in the x- and y-directions, respectively. If we replace the Newtonian law by kr and then again multiply by the appropriate fractions, we would use the code
double ax0 = -k*x0;
double ay0 = -k*y0;
To use this you would have to define the constant k in a sensible way. One way is to ensure that the acceleration of Mercury has roughly the same size in both laws, ie take k to equal kGravity/r3 when r3 is the cube of the radius of Mercury's orbit. By making replacements of this kind throughout the code, you can see how a Hooke's law solar system would look. In particular, the orbits should again be closed, but they will not be ellipses.

You could experiment with other force laws just for fun. For example, a 1/r3 force law would need the code
double ax0 = -k*x0/r4;
double ay0 = -k*y0/r4;
where r4 is the fourth power of the radial distance r, and where this k would be defined so that it equals kGravity*r at Mercury's orbit. What kinds of orbits do you get with this law?

Finally, and perhaps most interestingly, experiment with a modification of Newton's law where a small correction is added with a different power. Thus, a law with the total acceleration -kGravity/r2 - k/r4 could be coded as
double ax0 = -kGravity*x0/r3*(1 + eps3/r2);
double ay0 = -kGravity*y0/r3*(1 + eps3/r2);
where r2 is the square of the radius and eps3 is a number chosen so that the second term is small on Mercury's orbit. This could be, say, 0.1 times the square of the radius of Mercury's orbit. You will find that these orbits do not quite close, but instead describe elegant rosettes if continued for more than one orbit. (You will have to implement the above-mentioned suggestion that the program be allowed to output more than one orbit if you want to see these patterns.) Historically, various astronomers tried to find small modifications of Newton's law of gravitation when it was discovered that Mercury moves on an orbit that is rosette-like, and the amount by which an orbit does not close (called its orbital precession) was not explainable by the tidal effects of Jupiter or the other planets. In the end, Einstein explained the effect exactly by modifying Newton's law in a big way: he introduced general relativity. We will see in the program RelativisticOrbit that the effective acceleration law used by Einstein is exactly of the form suggested here.

If you want to change the program you will have to re-compile it, as explained by the help file Using Triana for Gravity from the ground up.

## Listing of the Java code for Orbit

### Preliminary definitions of parameters and constants

/*
xInit is the initial value of the x-coordinate of the planet,
in meters. Similarly, yInit is the initial value of the
y-coordinate. These are given default values but their values for
any run are set by the user in the parameter window.
*/
private double xInit;
private double yInit;

/*
vInit and uInit are the initial values of the x- and y-
velocities, respectively, in meters per second. These
are given default values but their values for any run
are set by the user in the parameter window.
*/
private double vInit;
private double uInit;

/*
M is the mass (in kg) of the object creating the gravitational field
in which the orbit is computed. The default value is the mass of the
Sun, but it is set by the user in the parameter window.
*/
private double M;

/*
dt is the time-step in seconds. It has a default value but it can
be set by the user in the parameter window.
*/
private double dt;

/*
maxSteps is the maximum number of steps in the calculation. This is
used to ensure that the calculation will stop even if initial values
are chosen so that the projectile goes far away. It is given
a default value but it can be set by the user in the parameter window.
*/
private int maxSteps;

/*
eps1 sets the accuracy of the time-step. If computed quantities
change by a larger fraction than this in a time-step, the time-step
will be cut in half, repeatedly if necessary. Its value for any run
is set by the user in the parameter window.
*/
private double eps1;

/*
eps2 sets the accuracy of the predictor-corrector step. Averaging
over the most recent time-step is iterated until it changes by
less than this relative amount. Its value for any run is set by
the user in the parameter window.
*/
private double eps2;

/*
outputType regulates the data that is to be output from the program.
The computation produces many kinds of data: positions, velocities,
energies. In order to make them accessible, the user can select a
value for this String, and the unit will output the required data.
First-time programmers can safely ignore these output issues, which
add some length to the program, although in a straightforward way.
Here are the choices and the data that they produce:
- "orbit (X,Y)" is the default choice and produces the orbit of the
planet drawn in the X-Y plane of the orbit. The unit outputs this
data from a single output node, which should be connected to the
graphing unit.
- "velocity space (V,U)" produces a curve in what physicists call
velocity space, a graph whose axes are the x- and y-components of
the velocity. Since a planet on a closed orbit also comes back to
the same velocity after one orbit, the graph of this curve will
be closed for such an orbit. The unit outputs this data from a
single output node, which should be connected to the graphing unit.
- "position vs. time (X,t) and (Y,t)" produces two curves, one giving
the value of the X-coordinate (vertical axis of the graph) against
the time along the orbit (horizontal axis) and the second giving the
Y-coordinate against time. To produce this data the unit automatically
changes the number of its output nodes to two as soon as the user
selects this option in the user interface window; the first output
node produces a curve of (X,t) and the second output node produces
(Y,t). The user should connect both nodes to the grapher to
see both curves at once. Alternatively, if only one is connected to
the grapher then only that particular coordinate will be displayed.
To connect two inputs to the grapher the user must use the grapher
unit's node window to set the number of input nodes to two.
- "velocity vs. time (V,t) and (U,t)" This does the same as the
previous choice except that it produces the x- and y-components of
the velocity (V and U) as functions of time instead of the
coordinate positions. Again the unit changes its number of output
nodes to two, and the user must change the grapher's input nodes to
two as well.
- "energy vs time" This produces three curves: the potential energy,
the kinetic energy, and the total energy, all as functions of time.
The unit changes itself to three output nodes and the data are output
in the order given in the previous sentence. To see all three at
once, as in the figure in the text, modify the number of input nodes
of the grapher to three and connect them all.
*/
private String outputType;

/*
This variable is for internal use and is not set by the user.
*/
private TaskInterface task;

### Program code

public void process() throws Exception {

/*
Define and initialize the variables we will need. The position
and velocity components are referred to an x-y coordinate system
whose origin is at the central gravitating mass. We need the
following variables for the calculation:
- t is the time since the beginning of the orbit.
- dt1 will be used as the "working" value of the time-step, which can
be changed during the calculation. Using dt1 for the time-step allows
us to keep dt as the original value, as specified by the user. Thus,
dt1 is set equal to dt at the beginning of the calculation, but it may be
reduced at any time-step, if accuracy requires it.
- v and u are the x- and y-speed, given here their initial values.
- x0 and y0 are variables that hold x- and y-coordinate values.
- r is the distance of the point (x0, y0) from the central mass.
- r3 is the cube of the radial distance.
- kGravity is the constant GM in Newton's law of gravity, where G is
Newton's gravitational constant.
- ax0 and ay0 are the x-acceleration and y-acceleration, respectively,
at the location (x0, y0).
- xCoordinate and yCoordinate are used to store the values of
x and y at each timestep. They are arrays of length maxSteps.
- xVelocity and yVelocity are arrays that are used to store the values
of the velocity components at each timestep.
- potentialEnergy and kineticEnergy are arrays that are used to store
the values of the potential and kinetic energy of the planet, taking
its mass to equal 1. (The mass of the planet is not needed for the
other calculations in this program, and since both energies are
simply proportional to the mass, the energies for any particular
planetary mass can be obtained by multiplying these values by
the mass after they are output from the program.)
- time is an array that is used to store the value of the time
associated with the current position, as measured from the
beginning of the orbit.
*/
double t = 0;
double dt1 = dt;
double v = vInit;
double u = uInit;
double x0 = xInit;
double y0 = yInit;
double r = Math.sqrt( x0*x0 + y0*y0 );
double r3 = r*r*r;
double kGravity = M * 6.6726e-11;
double ax0 = -kGravity*x0/r3;
double ay0 = -kGravity*y0/r3;
double[] xCoordinate = new double[ maxSteps ];
double[] yCoordinate = new double[ maxSteps ];
double[] xVelocity = new double[ maxSteps ];
double[] yVelocity = new double[ maxSteps ];
double[] potentialEnergy = new double[ maxSteps ];
double[] kineticEnergy = new double[ maxSteps ];
double[] time = new double[ maxSteps ];
xCoordinate = x0;
yCoordinate = y0;

/*
Now define other variables that will be needed, but without giving
initial values. They will be assigned values during the calculation.
- x1 and y1 are temporary values of x and y that are needed during the
calculation.
- ax1 and ay1 are likewise temporary values of the x- and y-acceleration.
- dx and dy are variables that hold part of the change in x and y that
occurs during a time-step.
- ddx0, ddy0, ddx1, and ddy1 are variables that hold other parts of
the changes in x and y during a time-step. The reason for having both
dx and ddx will be explained in comments on the calculation below.
- dv and du are the changes in velocity that occur during a time-step.
- testPrediction will hold a value that is used by the predictor-corrector
steps to assess how accurately the calculation is proceeding.
- angleNow holds the angular amount by which the planet has advanced in its
orbit at the current time-step.
- j and k are integers that will be used as loop counters.
*/
double x1, y1, ax1, ay1, dv, du, dx, dy, ddx0, ddy0, ddx1, ddy1;
double testPrediction, angleNow;
int j, k;

/*
Finally, we introduce some variables that are used to determine when the
trajectory completes a full orbit, so that the program can stop. This is
not a simple job, if we want to be able to handle any starting position
and any starting velocity. The idea is to determine from the initial
position and velocity whether the trajectory will move in the clockwise
or counterclockwise direction around the central mass. Having established
that, then we will write code below that checks to see if the angular
position of the trajectory has become larger (in the counterclockwise case)
or smaller (clockwise) than the starting position. If so, then the program
stops, since the original position has been passed. Of course, at the very
start the orbit satisfies these conditions as well, so the test can only
be applied after the orbit has gone at least half-way. The variables that
are needed in order to perform these tests are as follows:
- angleInitPos is the angle that a line from the origin to the initial
position makes with the x-axis. Like all the other angles, it is computed
from the initial data using the Math.atan2 function. This returns a
value between -Pi and +Pi radians.
- angleInitVel is similarly the angle that the initial velocity vector
makes with the x-axis
- anglediff is the angle between the position and velocity, which is
used to decide whether the orbit will move in the clockwise or
counter-clockwise direction. The comments just before its definition
explain how we ensure that it is in the same range (-Pi, Pi) as the
other angles.
- counterclockwise is a boolean variable (true/false) which is true if
the orbit moves in the counterclockwise direction, false otherwise
- fullOrbit ia another boolean variable that will be set to true when
the orbit returns to its starting point, so that the calculation can
stop. Its initial value is set to false.
- halfOrbit is a boolean variable that begins with the value false, and
will be set to true when the orbit has gone half-way around.
*/
double angleInitPos = Math.atan2(yInit, xInit);
double angleInitVel = Math.atan2(uInit, vInit);

/*
Since the two initial angles will both be in the range (-Pi, Pi), their
difference anglediff can be anywhere between (-2*Pi, 2*Pi). In order to
put anglediff into the same range as the other angles, one can add or
subtract 2*Pi to it without changing the actual location of the angle. So
if the angle is larger than Pi, subtract 2*Pi to set it between Pi and -Pi;
similarly if it is smaller than -Pi, add 2*Pi to set it between Pi and -Pi.
*/
double anglediff = angleInitVel - angleInitPos;
if ( anglediff > Math.PI ) anglediff -= 2*Math.PI;
else if (anglediff < -Math.PI) anglediff += 2*Math.PI;
boolean counterclockwise = ( anglediff > 0 );
boolean fullOrbit = false;
boolean halfOrbit = false;

/*
Now start the loop that computes the trajectory. The loop counter
is j, which (as in EarthOrbit) starts at 1 and increases by 1 each
step. The test for exiting from the loop will be either that the
orbit has gone once around, or that the number of steps exceeds
the maximum set by the user. This latter test is important because
some orbits do not close: if the initial velocity is too large the
trajectory simply goes off to larger and larger distances. The
logical expression that provides the test is
!fullOrbit && ( j < maxSteps )
Note the use of the logical negation operator !: !fullOrbit is true
when fullOrbit is false, i.e. before the end of the orbit, so it
allows the loop to continue.
*/
for ( j = 1; ( !fullOrbit && ( j < maxSteps )); j++ ) {

/*
- Set dv and du to the changes in x- and y-speeds that would occur
during time dt1 if the acceleration were constant at (ax0, ay0).
- Similarly set dx and dy to the changes in position that would
occur if the velocity components v and u were constant during the
time dt1.
- Set ddx0 and ddy0 to the extra changes in x and y that occur because
the velocity changes during the time dt1. The velocity change that
is used is only dv/2 (or du/2, respectively) because the most
accurate change in position comes from computing the average
velocity during dt1. We separate the two position changes, dx and
ddx0, because dx will be unchanged when we do the predictor-corrector
below (the change in position due to the original speed is always
there), while ddx0 will be modified when ax0 and hence dv is modified
by the predictor-corrector.
- Finally, set ddx1 and ddy1 to ddx0 and ddy0 initially. They will
change when we enter the predictor-corrector code.
*/
dv = ax0*dt1;
du = ay0*dt1;
dx = v*dt1;
dy = u*dt1;
ddx0 = dv/2*dt1;
ddy0 = du/2*dt1;
ddx1 = ddx0;
ddy1 = ddy0;

/*
Now advance the position of the satellite by our initial estimates of
the position changes, dx + ddx0 and dy + ddy0. Compute the radial
distance of this new position and the acceleration there.
*/
x1 = x0 + dx + ddx0;
y1 = y0 + dy + ddy0;
r = Math.sqrt( x1*x1 + y1*y1 );
r3 = r*r*r;
ax1 = -kGravity*x1/r3;
ay1 = -kGravity*y1/r3;

/*
Time-step check.
This is the code to check whether the time-step is too large. The idea
is to compare the changes in acceleration during the timestep with the
acceleration itself. If the change is too large a fraction of the
original value, then the step is likely to be too large, and the resulting
position too inaccurate. The code below cuts the time-step dt1 in half
and then goes back to the beginning of the loop. This is explained below.
But first we explain the test itself.
There is no unique test for this, nor does there need to be. If the time-step
is cut in half the calculation will be more accurate, so generally in
a test like this one tries to formulate the test just to make sure that
some kind of inaccuracy is being measured. Here the test is to compute
the absolute value of the change in the x-acceleration, ax1-ax0, and add
that to the absolute value of the change in the y-acceleration, ay1-ay0,
to get a measure of how big the change in acceleration is. This is then
compared with the "original" acceleration, which is similarly measured
by the sum of the absolute values of the components of the acceleration
at the start of the time-steps, |ax0| + |ay0|. The comparison is
simple: the user chooses the small number eps1, and if the changes
are larger than eps1 times the original, then the time-step is changed.
The test has the form of the logical comparison
change > eps * original
where "change" and "original" are computed as above.
The action that is taken is simple:
- If the changes are too large, the time-step is cut in half (dt1 /= 2)
and the loop index j is decreased by 1 (j--). Nothing else happens after
this point in the loop: the rest of the code after this is inside the "else"
clause that is executed if the change is small enough. So this pass
through the loop ends after the statement "j--;". The reason for
decreasing j is that the "for" statement automatically increases
j each time, but we want j to remain the same, since we are re-doing
the same time-step with a smaller value of dt1.
- If the changes are sufficiently small, the "else" clause is executed
instead. This keeps the value of dt1 the same. The "else" clause
contains the predictor-corrector step that is described in the comments
below.
*/
if ( Math.abs(ax1-ax0) + Math.abs(ay1-ay0) > eps1*(Math.abs(ax0) + Math.abs(ay0)) ){
dt1 /= 2;
j--;
}
else {

/*
Predictor-corrector step.
Now that the time-step dt1 is fixed, we address the other new feature
of this program, which is to ensure that the position changes are
computed using the average velocity over the time dt1. This in turn
requires us to calculate the velocity change, also by averaging the
acceleration. But the acceleration is a function of position, so we
do not know how to average it until we find the final position. This
is a circular requirement, and cannot be solved in a single step.
However, it can be solved iteratively. That is, one can make a guess
and keep refining it.
The initial guess has already been made: we have computed values of
dx, dy, ddx0, and ddy0 from the data available at the beginning of
the current time-step. Recall that dx and dy depend only on the
velocity at the beginning of the time-step, but ddx0 and ddy0 depend
on the acceleration. So we will refine them, computing replacement
values ddx1 and ddy1 as we get better values for the acceleration at
the end of the time-step. The refinement is done in another loop, whose
counter is k below. Before enetering the loop, we define a
variable called testPrediction which stores a measure of how large
the initial guesses are, so that we can stop the iteration when the
refined values do not change by much.
The for loop is limited to at most 10 iterations. This is to prevent
it from getting stuck for some reason and never finishing. Ten
iterations should be sufficient for any reasonable problem.
*/
testPrediction = Math.abs(ddx0) + Math.abs(ddy0);
for ( k = 0; k < 10; k++ ) {
/* compute dv and du by averaging the acceleration over dt1 */
dv = (ax0 + ax1)/2*dt1;
du = (ay0 + ay1)/2*dt1;
/* compute ddx1 and ddy1 by averaging the velocity change */
ddx1 = dv/2*dt1;
ddy1 = du/2*dt1;

/*
Test the change in ddx and ddy since the last iteration.
If it is more than a fraction eps2 of the original, then
ddx and ddy have to be re-computed by finding the acceleration
at the refined position.
If the change is small enough, then the "else:" clause is
executed, which exits from the for loop using the statement
"break". This finishes the iteration and goes on to wrap up
the calculation.
*/
if ( Math.abs(ddx1-ddx0) + Math.abs(ddy1-ddy0) > eps2 * testPrediction ) {
/* Re-define ddx0 and ddy0 to hold the values from the last iteration */
ddx0 = ddx1;
ddy0 = ddy1;
x1 = x0 + dx + ddx0;
y1 = y0 + dx + ddy0;
r = Math.sqrt( x1*x1 + y1*y1 );
r3 = r*r*r;
ax1 = -kGravity*x1/r3;
ay1 = -kGravity*y1/r3;

/*
We now have the "best" acceleration values, using the most
recent estimates of the position at the end of the loop.
The next statement to be executed will be the first statement
of the "for" loop, finding better values of dv, du, ddx1, and
ddy1.
*/
}
else break;
}

/*
The iteration has finished, and we have sufficiently accurate
values of the position change in ddx1 and ddy1. Use them to get
final values of x and y at the end of the time-step dt1 and store
these into x0 and y0, ready for the next time-step. Compute all
the rest of the variables needed for the next time-step and for
possible data output.
*/
t += dt1;
x0 += dx + ddx1;
y0 += dy + ddy1;
ax0 = ax1;
ay0 = ay1;
v += dv;
u += du;
xCoordinate[j] = x0;
yCoordinate[j] = y0;
xVelocity[j] = v;
yVelocity[j] = u;
r = Math.sqrt( x0*x0 + y0*y0 );
potentialEnergy[j] = -kGravity/r;
kineticEnergy[j] = 0.5*(v*v + u*u);
time[j] = t;

/*
Now test to see if the orbit has closed, i.e. if we have gone around
the central mass once. We do this by computing the change in the
angular position of the orbit from its starting position, using the
same code for keeping the angular difference between -Pi and +Pi as
we used at the beginning of the program. This is stored in anglediff
as before. Once anglediff has been calculated, we enter the code
that tests for the completion of the orbit. It is based on an "if"
statement. The first part of the statement is executed if !halfOrbit is
"true", i.e. if at the previous step we were not yet half-way around
the central mass. The purpose of this part is to test the value of
anglediff to see if we have gone half-way by the present step. The
test depends on whether the orbit goes counterclockwise or not, so
this part of the overall "if" statement contains another "if". If
we are going counterclockwise, then in previous steps the value of
anglediff has been increasing. When it reaches Pi, we are half-way. It
will never exactly equal Pi, since our steps are not chosen to make
an integer number of divisions of the orbit, so we recognize that we
have gone half-way by allowing anglediff to get larger than Pi.
However, we know from the previous lines of code that when anglediff
is larger than Pi, we subtract 2*Pi, and therefore it becomes
negative. This is therefore the test: if anglediff is negative, we
know we have gone half-way, and we set the value of halfOrbit to true.
If the orbit were a clockwise orbit, then this is reversed: the
first time anglediff goes positive, we set halfOrbit to true.
If, however, we have already gone half-way by the time of the present
time-step, then the "else" clause of the overall "if" statement
will execute. This looks for the end of the orbit with the opposite
criterion to finding the half-way point. For a counterclockwise orbit,
when anglediff becomes positive again, we have passed through orbital
difference zero, which is where we started, so the orbit has finished.
In the clockwise case, we watch anglediff to see when it goes
negative. This finishes the orbit. We set the value of fullOrbit
to "true". This causes the overall loop around the orbit to finish.
*/
angleNow = Math.atan2(y0, x0);
anglediff = angleNow - angleInitPos;
if (anglediff > Math.PI) anglediff -= 2*Math.PI;
else if (anglediff < -Math.PI) anglediff += 2*Math.PI;
if (!halfOrbit) {
if (counterclockwise) halfOrbit = (anglediff < 0);
else halfOrbit = (anglediff > 0);
}
else {
if ( counterclockwise ) fullOrbit = (anglediff > 0);
else fullOrbit = (anglediff < 0);
}
}
}

/*
The orbit is finished. Now, as in previous programs, define arrays
to contain the positions along the orbit with just the right size,
so that no zeros are passed to the grapher. The value of j at this
point is equal to the number of elements we need for the output arrays.
But in this program, we must also check which output choice has been made and
tailor the output to this choice. This includes, for some choices, multiple
output nodes, as in EarthOrbit. First-time programmers can safely
ignore this section.
*/

if (outputType.equals("orbit (X,Y)")) {
double[] finalX = new double[j];
double[] finalY = new double[j];
for ( k = 0; k < j; k++ ) {
finalX[k] = xCoordinate[k];
finalY[k] = yCoordinate[k];
}
Curve out = new Curve( finalX, finalY );
out.setTitle("Velocity of orbit");
out.setIndependentLabels(0,"x (m)");
out.setDependentLabels(0,"y (m)");
output( out );
}
else if (outputType.equals("velocity space (V,U)")) {
double[] finalV = new double[j];
double[] finalU = new double[j];
for ( k = 0; k < j; k++ ) {
finalV[k] = xVelocity[k];
finalU[k] = yVelocity[k];
}
Curve out = new Curve( finalV, finalU );
out.setTitle("Velocity of orbit");
out.setIndependentLabels(0,"V (m/s)");
out.setDependentLabels(0,"U (m/s)");
output( out );
}
else if (outputType.equals("position vs. time (X,t) and (Y,t)")) {
double[] finalX = new double[j];
double[] finalY = new double[j];
double[] finalT = new double[j];
for ( k = 0; k < j; k++ ) {
finalX[k] = xCoordinate[k];
finalY[k] = yCoordinate[k];
finalT[k] = time[k];
}
Curve out0 = new Curve( finalT, finalX );
out0.setTitle("x(t)");
out0.setIndependentLabels(0,"t (s)");
out0.setDependentLabels(0,"position (m)");
Curve out1 = new Curve( finalT, finalY );
out1.setTitle("y(t)");
outputAtNode( 0, out0 );
outputAtNode( 1, out1 );
}
else if (outputType.equals("velocity vs. time (V,t) and (U,t)")) {
double[] finalV = new double[j];
double[] finalU = new double[j];
double[] finalT = new double[j];
for ( k = 0; k < j; k++ ) {
finalV[k] = xVelocity[k];
finalU[k] = yVelocity[k];
finalT[k] = time[k];
}
Curve out0 = new Curve( finalT, finalV );
out0.setTitle("V(t)");
out0.setIndependentLabels(0,"t (s)");
out0.setDependentLabels(0,"speed (m)");
Curve out1 = new Curve( finalT, finalU );
out1.setTitle("U(t)");
outputAtNode( 0, out0 );
outputAtNode( 1, out1 );
}
else if (outputType.equals("energy vs time")) {
double[] finalP = new double[j];
double[] finalK = new double[j];
double[] finalE = new double[j];
double[] finalT = new double[j];
for ( k = 0; k < j; k++ ) {
finalP[k] = potentialEnergy[k];
finalK[k] = kineticEnergy[k];
finalE[k] = finalP[k] + finalK[k];
finalT[k] = time[k];
}
Curve out0 = new Curve( finalT, finalP );
out0.setTitle("Potential energy vs time");
out0.setIndependentLabels(0,"t (s)");
out0.setDependentLabels(0,"energy (J)");
Curve out1 = new Curve( finalT, finalK );
out1.setTitle("Kinetic energy vs time");
Curve out2 = new Curve( finalT, finalE );
out2.setTitle("Total energy vs time");
outputAtNode( 0, out0 );
outputAtNode( 1, out1 );
outputAtNode( 2, out2 );
}

}

Return to index of all computer programs.
