Planck

version 1.0
© 2003 Bernard Schutz

Study the spectrum of a black body, which is a good approximation to the radiation from a star or a black hole. Find the wavelength at which the radiation peaks, and the total luminosity, by using the spectral energy distribution first proposed by Max Planck.

Contents

Description of Planck

The unit called Planck implements the Java program for computing the area under the Planck curve and the location of the maximum of the Planck curve. Unlike the other programs for Gravity from the ground up, Planck does not output a graph: it just reports whichever of these two numbers the user chooses. The maximum of the Planck curve tells us, when the appropriate scaling is applied, what wavelength the peak emission occurs at for a black body at a given temperature. The area under the curve tells us how much energy the black body radiates in total. The Planck function is studied in Chapter 10, and Investigations 10.1, 10.2 and 10.3 are relevant to this program.

Using Planck

Simply drag the Planck icon from the toolbox into the working area, drag the icon for ConstView, and connect them up if Triana has not already done so. If you press the Start button then the program will execute with its default settings, producing the value of the location of the maximum of the Planck curve.

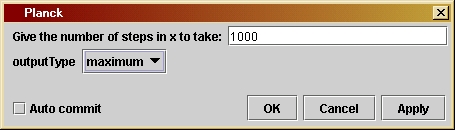

The parameter window for Planck is shown here. There are only two parameters, one to fix the number of steps along the domain of the Planck function that the program should take, and the other to choose the type of output. The first parameter determines the accuracy of the answer: the more steps, the more precision you will sample the Planck function with. The output type is chosen from a drop-down list (called a choice box). shown here. If you choose "maximum" then you will get the value of x (the independent variable) at which the maximum occurs. If you choose "area" you will get the area under the Planck curve. See Investigation 10.2 for more detail.

Understanding Planck

This program is a straightforward implementation of the procedure indicated in Investigations 10.2 and 10.3. It uses a loop to step through values of x; the more steps the user chooses, the finer will be the steps and the more exact will be the answers. It finds the maximum by a simple procedure: define a variable yPeak which looks for the largest value of the function. It is set to zero initially, and then each value of the function is tested against it. If the new value is bigger than yPeak then we re-set yPeak to the new value. If the new value is smaller then we don't change yPeak.Whenever we set yPeak we also record in the variable xPeak the location of the currently recorded value. This is then the value that is output when the user asks for the maximum. The code for this is simply:
            if (y > yPeak) {
                yPeak = y;
                xPeak = x;
            }
where y is the value of the function computed at the current step in x.

The area is computed by the trapezoidal rule, as illustrated in Figure 10.5. To use this, the loop has to remember the previous value of y as well as the current one. This is stored in yLast. Then the area is computed in the step
            area += 0.5*(y + yLast)*dx;
Notice that this uses the Java increment-assingment operator "+=", which adds the right-hand-side to the area. The last step in the loop is
            yLast = y;
in which we ensure that at the next step, yLast will hold the correct (i.e. previous) value.





Listing of the Java code for Planck

Preliminary definitions of parameters and constants

    /*
      nSteps is the number of divisions that the domain x of the Planck
      function will be divided into. It is chosen by the user in the
      user interface window.
    */
    private int nSteps;

    /*
      outputType determines what data will be output. The user chooses
      it in the user interface window in order to select between
      the location of the maximum of the function (for Wien's law) or
      the area under the Planck curve (for the Stefan-Boltzmann law).
    */
    private String outputType;


Program Code

    public void process() throws Exception {

        /*
          Variables needed for the calculation:
          - x is the independent variable in the Planck function.
          - y is the value of the Planck function y=x^5/(e^x-1)
          - xMin is the beginning of the range of x.
          - XMax is the end of the range of x.
          - xLow is the value of x, below which we use the small-x
            approximation for the Planck function, as in the text.
          - xHigh is the value of x, above which we use the large-x
            approximation for the Planck function, as in the text.
          - dx is the step-size in x.
          - area will accumulate the area under the curve.
          - xPeak is the value of x where the Planck function reaches
            its maximum. It is set to zero at first and changed in
            the loop until the correct value is reached.
          - yPeak is the maximum value of the Planck function. It is
            set to zero at first and changed in the loop until the
            correct value is reached.
          - yLast is a variable that will hold the value of y at the
            lower of the two values of x in the intervals used for
            finding the area under the curve.
        */
        double x, y;
        double xMin = 0.01;
        double xMax = 100.0;
        double xLow = 0.05;
        double xHigh = 20.0;
        double dx = 0.01;
        double area = 0.0;
        double xPeak = 0.0;
        double yPeak = 0.0;
        double yLast = 0;


        /*
          Now we enter the for loop that runs across the domain x and
          searches for the maximum of the Planck function and calculates
          the area under the curve.
        */
        for ( x = xMin; x <= xMax; x += dx ) {
            /*
              Compute the value of the Planck function, using the
              approximations for small or large x as appropriate.
            */
            if ( x < xLow ) y = Math.pow(x, 4);
            else if ( x > xHigh ) y = Math.exp( 5.0*Math.log(x)-x );
            else y = Math.pow(x, 5) / (Math.exp(x) - 1);
            /*
              Find the maximum by testing each new value of y to
              see if is larger than the one already stored in
              yPeak. If it is larger, then yPeak is set equal to
              the new value and xPeak is set equal to x. In this
              way when the loop is finished xPeak contains the
              location of the maximum.
            */
            if (y > yPeak) {
                yPeak = y;
                xPeak = x;
            }
            /*
              To find the area, add in the area under the curve
              (as computed by the approximation described in the
              text) between the present value of x and the previous
              one. The value of y at the previous x has been stored
              in yLast. Note that the area required is under the
              curve x^3/(e^x-1), so we must divide by x^2.
            */
            y /= (x*x);
            area += 0.5*(y + yLast)*dx;
            /*
              Now make sure yLast contains the current value of y,
              which will be the previous value at the next step.
            */
            yLast = y;
        }

        if (outputType.equals("area")) output( new Const(area));
        else if (outputType.equals("maximum")) output( new Const(xPeak));


    }
