SphereGravity

version 1.0
© 2003 Bernard Schutz

Test Newton's theorem that the gravitational attraction outside of a sphere is the same as if all its mass were concentrated at its center.


Contents

Description of SphereGravity

The unit called SphereGravity implements the Java program for computing the gravitational attraction of a spherical shell of matter. It is designed to verify Newton's discovery that gravity outside a sphere is the same as the gravity that would be created by the same total mass concentrated at a point at the center of the sphere, and that the acceleration of gravity inside a hollow spherical shell is zero. The program shows that these results are true for a spherical shell of very small thickness. That is sufficient to prove the theorem, since any other spherical distribution of matter can be regarded as a collection of many very thin shells; if the theorem holds for each shell then it holds for the collection.

As described in Investigation 4.3, the program uses a simple method: it just breaks the shell into a large number of sections, and treats each section as if it were a point-mass. It then adds up the gravitational accelerations of all the "points" to approximate the acceleration created by the shell. It computes this acceleration at different places inside and outside the shell and outputs the results.

A computer program like this cannot prove the theorem exactly, but it can demonstrate the the theorem is true to any desired level of accuracy. In this case, the user can change the accuracy of the calculation by changing the number of divisions into which the shell is broken in order to do the computation. The larger the number of divisions, the smaller is each "particle", and the more accurate is the calculation. The user can choose to output the difference between what the program computes and what Newton's theorem predicts; if this difference gets smaller as the accuracy of the computation improves, then that is a very strong indicator of the correctness of the theorem.

Using SphereGravity

Simply drag the SphereGravity icon from the toolbox into the working area, drag the SGTGrapher unit into the area, and connect the two if Triana has not already done so. If you press the Start button then the program will execute with its default settings, producing a plot of the gravitational acceleration of the spherical shell at different places inside and outside the shell.

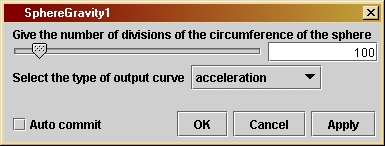

The parameter window shown here allows the user to determine the accuracy of the computation of the gravitational acceleration of the sphere, and to decide what information to output. The first parameter is the number of divisions of the circumference of the sphere that are used in breaking up the sphere into an equivalent number of point particles. The number of particles will be approximately the square of this number, since both latitude and longitude will be divided into this number of divisions. The more divisions, the more accurate the computation. The slider has a maximum value of 10000, which will be enough to show that the computation is very close to the theoretical result. If you want numbers larger than 10000, you may type any integer into the window in this parameter window, but beware that larger values will take more computer time, approximately as the square of the number of divisions.

The second parameter is a drop-down list (choice box) that allows the user to choose what kind of information to display in the output graph. The first choice, "acceleration", outputs the total acceleration of gravity for this shell. You will see from the output that, outside the shell (whose radius is 1), there is the characteristic 1/r2 falloff, and inside the shell the acceleration of gravity is zero. The second choice, "relative difference", is actually more informative. It computes the difference between the Newtonian result and the present numerical one, divided by the Newtonian result. Actually, since the Newtonian acceleration inside the shell is zero, the data inside the shell are not divided by anything, they are just reproduced exactly as if one had chosen "acceleration". But outside the sphere only the relative difference is shown.


Suggestions for playing with SphereGravity

The main way to "play" is to alter the number of divisions in order to change the accuracy of the calculation. When you do this, choose to output the relative difference, so you can see the accuracy improvement. Go up in steps of factors of 10, from the default 100 divisions to 1000 and then to 10000. You should see the relative difference decrease from approximately 3% (at its worse point, just outside the sphere) to about 10-5 and then to about 10-7.


Understanding SphereGravity

This program is based on the method described in Investigation 4.3, which you should read before attempting to understand the program. Most of the steps in the computer program are very straightforward implementations of the procedures described there.

The program begins (after some initialization steps) with a loop to add up the mass of the shell by dividing the shell into the small "tiles" and adding up the masses of each of them. This is followed by the main computation of the acceleration, which uses two "for" loops, one inside the other. Computer specialists call this "nesting": the inner loop is nested inside the outer one, and the inner one executes completely for each iteration of the outer one. In this case, the outer one steps through many different places where we could compute the acceleration, while the inner one does the acceleration computation for each of these locations. The outer loop takes 1000 different locations in the range from r = 0 (the center of the shell) to r = 100, with the shell having radius r = 1.

The final part of the code converts the acceleration into a relative acceleration if that is what the user has chosen.


Suggested modifications of SphereGravity

Remarkably, the property that the acceleration inside a spherical shell is exactly zero is not a property only of the sphere; if the shell has exactly the shape of an ellipse it will still be true. The acceleration outside an ellipse will not obey Newton's theorem: it is not the same as the acceleration of a point mass, because obviously it will depend on direction whereas a point mass is spherically symmetric. But the result for inside the shell is the same. Try to modify the program to make the shape of the shell elliptical instead of spherical. and then verify this result This is not hard if you allow the ellipse to be axially symmetric about the axis on which the computation is done. Even so, you should sample the acceleration at points off this axis as well as along it, which will complicate the computation of the acceleration. This is not an easy modification to make, but it will verify a result that is rather unexpected.

If you want to change the program you will have to re-compile it, as explained by the help file Using Triana for Gravity from the ground up.

Listing of the Java code for SphereGravity

Preliminary definitions of parameters and constants

    /*
      The number of divisions of each angular coordinate that are used
      in tiling the shell. The number of tiles is therefore nDiv*nDiv.
      In the program, each tile is treated as a point mass, so the
      approximation should become better as nDiv is made larger. Can
      be chosen by the user.
    */
    private int nDiv;

    /*
      A String that governs what data is written to the output. If the
      String equals "acceleration" then the output is the full acceleration
      as calculated by this program. If the String equals "relative difference"
      then the output has two different forms. Outside the sphere, the values
      output are the differences between the acceleration computed here
      and the prediction of Newton, divided by the Newtonian value. Inside
      the sphere, where the Newtonian acceleration is zero, the values are the
      acceleration computed here divided by the Newtonian acceleration just
      outside the shell. Can be chosen by the user.
    */
    private String outputType;

    /*
      The relative thickness of the shell, i.e. the ratio of its thickness
      to its radius. This does not affect the approximation, since the tiles
      are always replaced by points, no matter how thick, but it does affect
      the total mass of the shell. Set here to a fixed value of 0.001.
    */
    private double epsilon = 0.001;

    /*
      Converts degress to radians.
    */
    private double degToRad = Math.PI/180.0;



Program code

    public void process() throws Exception {
        // Insert main algorithm for SphereGravity

        /*
          Define a number of variables needed in the program:
          - dPhi is the angular size, in radians, of the divisions of
            the shell around the equator. The equator is divided into
            nDiv divisons.
          - dTheta is the angular size, in radians, of the divisions of
            the shell from pole to pole. Like the equator, the meridian
            is divided into nDiv divisions.
          - theta will be used for the value of the latitude of each tile,
            and is set to the latitude at the center of the tile. The
            value set here is the value associated with the first set of
            tiles, around the south pole.
          - mass will be used to compute the mass of the shell. It starts
            at zero and will be incremented by the mass of each tile.
          - accel will be used to compute the acceleration produced by
            the shell at any position. It starts at zero and will be
            incremented by the accleration of each tile.
          - dAccel will be used for the value of the acceleration toward
            the center of the shell produced by each tile.
          - r will be used for the radial positions at which the acceleration
            will be evaluated.
          - dm will be used for the value of the mass of each tile
          - x, dist, s, j, and k are variables used for intermediate
            results in various loops.
          - newton is a variable that will be used to hold the value of
            the acceleration as predicted by Newton.
          - acceleration is an array that will hold the values of the
            acceleration computed at the different radii.
          - radius is an array that will hold the values of the radii
            themselves.
          - title will be used at the output step to pass a graph title
            to the grapher, to show which output type is being plotted.
          - label will be used at the output step to pass a label for
            the vertical axis to the grapher, according to the ouput type.
        */
        double dPhi =  360.0*degToRad/nDiv;
        double dTheta = 0.5*dPhi;
        double theta = 0.5*dTheta - 90*degToRad;
        double mass = 0.0;
        double accel = 0.0;
        double dAccel, r, x, dist, dm, s, newton;
        int j, k;
        double[] acceleration = new double[1000];
        double[] radius = new double[1000];
        String title = "Gravitational acceleration due to shell";
        String label = "acceleration ((m/s)/s)";

        /*
          First compute the mass of the shell by adding up the masses of
          all the tiles. This requires a loop over rings of contant
          theta. All the tiles in such a ring are identical.
        */
        for ( k = 0; k < nDiv; k++ ) {
            /*
              The mass of each tile is its volume, since we take the
              density equal to 1. Its volume is the product of the
              thickness epsilon with the area of the tile. The linear
              size of the tile along the line of latitude is
              dPhi * cosine(theta). Remember that theta starts out
              with the value at the south pole, and so at the end of
              the loop it must be changed to the next value.
            */
            dm = dTheta * dPhi * Math.cos(theta) * epsilon;

            /*
              The tiles at a given latitude are all identical, and there
              are nDiv of them. So the contribution of this ring to the
              mass is just nDiv times the values for each tile.
            */
            mass += dm * nDiv;
            theta += dTheta;
        }

        /*
          Now begin the loop over radial positions where the acceleration will
          be computed. This starts at the center and goes outwards to a value of
          about 100 times the radius of the shell. To avoid division by zero,
          the step at exactly the radius of the shell is skipped and (after all
          the other calculations are done) the acceleration there is set to zero.
          The loop terminates when it has evaluated the acceleration at 1000
          different radii, starting at the center. Ten of these are inside the
          shell.  For each radius, the value of the acceleration is stored in
          the array acceleration[].
        */
        for ( j = 0; j < 1000; j++ ) {
            r = j * 0.1;
            radius[j] = r; // store the radius for this position.
            if ( j != 10 ) { // skip the step where r = 1, the radius of the shell
                /*
                  Again loop over rings of constant theta. All the tiles in
                  a given ring are at the same distance dist from the observation
                  point. The mass of each tile is dm as above, and each tile contributes
                  dAccel to the acceleration. Start off with the value of theta associated
                  with the tiles around the south pole again, and reset the initial value
                  of accel to zero.
                */
                accel = 0.0;
                theta = 0.5*dTheta - 90*degToRad;
                for ( k = 0; k < nDiv; k++ ) {
                    s = Math.sin(theta); // used to avoid computing sin(theta) twice
                    dist = Math.sqrt( 1 + r*r + 2*r*s );
                    dm = dTheta * dPhi * Math.cos(theta) * epsilon; // tile mass as before
                    x = r + s;  // x-distance from tile to observation distance r
                    dAccel = dm * x / (dist * dist * dist);
                    /*
                      The tiles at a given latitude are all identical, and there
                      are nDiv of them. So the contribution of this ring to the
                      acceleration is just nDiv times the value for each tile.
                    */
                    accel += dAccel * nDiv;
                    theta += dTheta;
                }
            acceleration[j] = accel; // store the acceleration for this radius.
            }
        }

        /*
          Set the missing acceleration at j = 10 (r = 1 ) to zero. We do this
          just to make sure that the array acceleration[] is full. The value
          exactly on the shell in Newtonian gravity depends on the thickness
          of the shell and on just where within the thickness we compute it, so it is not
          important for our purposes here, which is to demonstrate that the field outside
          the shell is that of a point mass and inside is zero.
        */
        acceleration[10] = 0;

        /*
          Now deal with the different output choices. If the user has selected
          "acceleration" then nothing needs to be done, since the array of the
          same name contains the required values. But if the user has chosen
          "relative difference" then we modify the contents of the same array
          to contain the required output.

          The test to see which option has been selected requires looking at the
          contents of the String called outputType, which is set by the user
          in the user interface panel. The Java String method "equals" performs
          the test: if the contents of the associated string equal the
          given argument of the function, then the method returns the value
          "true"; otherwise it returns "false". The method is invoked by
          writing [String name].equals([test string]), which in this case is
              outputType.equals( "relative difference" ).
          If the contents of the String outputType are identical to the given
          argument "relative difference" then this expression returns "true".

          The output values if the user selects "relative difference" must
          be computed in different ways for points inside and outside the
          shell. Outside the shell, we take the difference between the
          computed acceleration and the value Newtonian theory predicts,
          divided by Newtonian theory. Inside, where the Newtonian
          acceleration is zero, this won't work, so we just divide the
          computed acceleration by the value of the Newtonian acceleration
          just outside the shell. In both cases, if Newton is right, the
          results should be very small numbers, and should get smaller
          (closer to zero) as the accuracy (number of tiles of the shell)
          is increased.

          Note that the Newtonian acceleration outside the shell is, in
          our units, just the mass of the shell divided by the square
          of the distance to its center. We have computed the mass and
          stored it in the variable of the same name, and the radius is
          in the array radius[]. Since the radius of the shell is 1 in
          our units, the acceleration just outside the shell is equal to
          the value of the variable "mass".
        */

        if ( outputType.equals( "relative difference" ) ) {
            for ( j = 0; j < 1000; j++ ) {
                if ( j <= 10 ) acceleration[j] /= mass; // inside the shell
                else {                                 // outside the shell
                    newton = mass/(radius[j] * radius[j]);
                    acceleration[j] = (acceleration[j] - newton)/newton;
                }
            }
            title = "Relative difference of computed and theoretical accelerations";
            label = "fractional difference";
        }

        /*
          As in previous programs, we output the data as the TrianaType Curve.
        */

        Curve out = new Curve( radius, acceleration );
        out.setTitle(title);
        out.setIndependentLabels(0,"distance from center of shell");
        out.setDependentLabels(0,label);
        output( out );

    }
