Description of Star

The program is easy to use and shows many important aspects of stars: the great contrast in pressure, density, and temperature between the interior and surface layers; the way that size, composition and mass are related in a given family of stars; how high the central pressure and temperature must be in order to support a star of a given mass. This program illustrates how professional astronomers study stars in detail. By building models like these, but with more realistic physics, astronomers can infer the mass and interior structure of a star from observed properties, like its spectrum. These conclusions can then be tested on systems that provide more information, such as in binary stars where the mass can be inferred from the orbital dynamics. Other astronomers then use such models to study the long-term evolution of stars by allowing for changes in their central conditions and composition as a result of nuclear reactions. Without such interaction between observation and computer-based theory, our understanding of the Universe would be much poorer.

Using Star

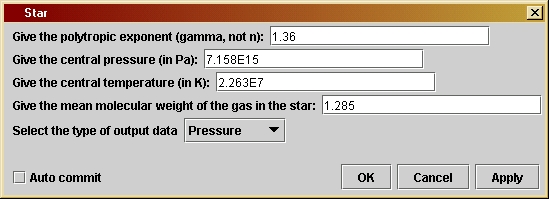

The parameter window shown here allows the user to determine what kind of star is being modelled. The first parameter is the polytropic exponent g. The default value is the one that gives the best model for the Sun. Recall that stars are unstable if this number is smaller than 4/3. Giant stars have polytropic indices that closely approach 4/3, while most white dwarfs are better modelled with g  = 5/3. The second parameter is the central pressure of the star, in pascals. The third is its central temperature, in kelvins. The fourth parameter is the mean molecular weight of gas in the star, which allows the user to adjust the composition. The given value is appropriate for the Sun.The central temperature,  pressure, and mean molecular weight together determine the constant k in the polytropic equation of state that is used for the program. Once it is fixed at the center it is assumed the same everywhere.

The final parameter is a drop-down window (choice box) where the user can choose what data to output. Besides the choices available in the program Atmosphere (pressure, density, and temperature), the program also allows the user to look at the distribution of mass in the star. This is given by the function m(r), the total mass interior to radius r.


Suggestions for playing with Star

When the Sun evolves into a red giant star, it will have a much more extended structure. Try to build a model of a star with the same overall mass as the Sun, the same composition, a value of g equal to 1.335, but a radius 100 times larger. Other giant stars have masses ten times the mass of the Sun. Build models of their structure, using the same composition and polytropic exponent as for the solar giant model.

Model a neutron star in Newtonian gravity by taking g equal to 2. Build a model whose radius is 10 km and whose mass is 1.4 solar masses, using a mean molecular weight of 1. What values of the central pressure and temperature do you need? We will build fully relativistic models using the program Neutron.

In Investigation 8.6 we derive several scaling relations, which are proportionalities among several quantities like the central pressure, the radius, and the mass of the star. Build several models for a given fixed equation of state and see if they do in fact obey these scalings.


Understanding Star

1. Gravity cannot be taken to be a constant inside a star. At its center the gravitational acceleration is zero, whereas at its surface the whole star is pulling down and creating a large acceleration. Therefore the program replaces the simple constant g used in Atmosphere with the expression Gm(r)/r², where m(r) is the mass interior to the position r where the acceleration is being calculated. Only the mass interior to r is needed, because as we learned from the program SphereGravity, any spherical distribution of mass outside r exerts no net gravitational force on material at r.

   To implement this, the program has to keep track of the mass interior by adding it up as it marches outwards. Each step outwards of length dr adds a shell of volume 4pr²dr to the volume of the star, and this adds a mass of 4prr²dr if the local density is r. In the loop stepping outwards, you will find that the equation of hydrostatic equilibrium is now written

        p[j] = p[j-1] - G * rho[j-1] * mass[j-1] * dr / (radius[j-1] * radius[j-1]);
and a bit later the mass is updated with the line
        mass[j] =  mass[j-1] + 4 * Math.PI * radius[j-1] * radius[j-1] * rho[j-1] * dr;
2. The second major change is that we do not specify the temperature structure ahead of time, as we did in Atmosphere. For the Earth's atmosphere, we can measure the temperature directly. But we cannot do that for stars, so we have to infer it from the computer program. In the program Atmosphere, the temperature was needed so that we could compute the density from the pressure, using the ideal gas equation of state.  Here, we make a simple assumption that the pressure and density are related by a polytropic law (a power law). We use the composition and the central temperature (a parameter) to infer what the proportionality constant is in the polytropic law, and then we use this for the remainder of the structure calculation. Thus, in the preliminary part of the code, before the loop which steps outwards, we find the lines

        double q = mp * mu / k;
        double rhoC = pC * q / TC; //use ideal gas law to get density
        double gammaRecip = 1.0 / gamma;
        double D = rhoC / Math.pow(pC, gammaRecip);
These result in the value of a constant D which is the proportionality constant when the polytropic law is solved for density, i.e. r = Dp^(1/g). Then in the loop one finds the calculation of the density from the pressure using D
        rho[j] = D * Math.pow(p[j], gammaRecip);
:where gammaRecip is simply 1/g.

Suggested modifications of Star

If you want to change the program you will have to re-compile it, as explained by the help file Using Triana for Gravity from the ground up.


Listing of the Java code for Star

Preliminary definitions of parameters and constants

    /*
      TC is the central temperature of the star, in kelvins. It is given by
      the user in the user interface window.
    */
    private double TC;

    /*
      mu is the mean molecular weight of the stellar gas, which is defined
      as the average mass, in units of the proton mass, of all the atoms,
      molecules, ions, electrons, etc that move freely in the star. We assume
      that this is constant through the star, which will not be true for
      older stars which have created heavy elements near their centers.
      It is given by the user in the user interface window.
    */
    private double mu;

    /*
      gamma is the polytropic exponent in the equation of state relating
      pressure and density: pressure is proportional to (density)^(gamma).
      It is given by the user in the user interface window.
    */
    private double gamma;

    /*
      outputType is a String which governs what kind of data will be
      output. All data is output as a Curve with x-values being the
      radial distance and y-values being one of four choices: pressure,
      density, temperature, or mass. In this case, "mass" means "mass
      interior to the given radius". The user chooses one of these four
      in the user interface window.
    */
    private String outputType;

    /*
      Three constants: k is Boltzmann's constant; mp is the mass of
      the proton; and G is Newton's gravitational constant. Values of
      all three are given in SI units.
    */
    private double k = 1.38e-23;
    private double mp = 1.67e-27;
    private double G = 6.672e-11;



Program code

    public void process() throws Exception {

        /*
          Define variables needed for the calculation:
          - q is a combination of constants in the ideal gas law, used often.
          - rhoC is the density at the center of the star.
          - gammaRecip is the reciprocal of gamma, 1/gamma.
          - D is the proportionality factor in the polytropic equation of state
            written to give the density as a function of the pressure,
            rho = D * (pressure)^(1/gamma). This is determined by demanding that
            the polytropic law give the same central density (depending on D and
            the central pressure) as the ideal gas law (depending on the central
            pressure and temperature). Thus, D is determined by the central values
            of the pressure and temperature, and by the exponent gamma.
          - scale is the scale-height of the pressure, roughly the distance
            over which the pressure will fall by a factor of 2.
          - dr is the size of the step in radius that the program will make.
          - arrays radius, p (pressure), rho (density), Temp (temperature),
            and mass (mass inside the radius value of the same index)
            hold the values of the associated physical quantities at the
            successive radial steps. The arrays are initially given 2000
            elements. The choice of radial step dr is designed to
            ensure that the surface of the star (where p = 0) is reached
            in fewer than 2000 steps. Then give the values of the first
            elements of the arrays.
          - lastStep is an int that will hold the value of the array index
            associated with the surface of the star. Set it to zero and
            use it as a test of whether the surface has been reached (see below).
          - j is a loop counter.
        */
        double q = mp * mu / k;
        double rhoC = pC * q / TC; //use ideal gas law to get density
        double gammaRecip = 1.0 / gamma;
        double D = rhoC / Math.pow(pC, gammaRecip);
        double scale = Math.sqrt(pC / G) / rhoC;
        double dr = scale / 400.;
        double[] radius = new double[2000];
        double[] p = new double[2000];
        double[] rho = new double[2000];
        double[] Temp = new double[2000];
        double[] mass = new double[2000];
        radius[0] = 0;
        p[0] = pC;
        Temp[0] = TC;
        rho[0] = rhoC;
        mass[0] = 0;
        int lastStep = 0;
        int j;


        /*
          Do the calculation as long as the top has not been reached.
        */
        while ( lastStep == 0 ) {

            /*
              As described in the text, we cannot start the loop accurately with the
              first points. Instead we compute the values of pressure etc at the
              first non-zero radial step (radius[1] = dr) by the approximations given
              in the text.
            */
            radius[1] = dr;
            p[1] = pC;
            rho[1] = rhoC;
            mass[1] = 4.0 * Math.PI * dr * dr * dr * rhoC/ 3.0;
            Temp[1] = q * pC / rhoC; // use ideal gas law to get temperature

            /*
              Do calculation step by step, using the equation of hydrostatic
              equilibrium (in the second line of the loop).
            */
            for ( j = 2; j < 2000; j++ ) {
                radius[j] =  radius[j-1] + dr;
                p[j] = p[j-1] - G * rho[j-1] * mass[j-1] * dr / (radius[j-1] * radius[j-1]);
                if ( p[j] < 0 ) {
                    lastStep = j; //stop when the pressure goes negative
                    break;
                }
                mass[j] =  mass[j-1] + 4 * Math.PI * radius[j-1] * radius[j-1] * rho[j-1] * dr;
                rho[j] = D * Math.pow(p[j], gammaRecip);  //polytropic equation of state
                Temp[j] = q * p[j] / rho[j]; // ideal gas law
            }
            /*
              If we reach this point and lastStep is still zero, then we have
              used 2000 steps and not yet reached the surface. We must start the
              loop again with a larger step dr so that we can reach the surface in
              2000 steps. The next line of the code resets the value of dr, and
              then when we reach the end-bracket of the "while"-loop the test
              in the loop will evaluate to true and the "for"-loop will be
              done again with this step-size.
              If we reach this point and lastStep is no longer zero, then we
              have finished the calculation. The next step (changing dr) will be
              executed but we will leave the "while"-loop and so the new value
              of dr will not be used.
            */
            dr *= 2.;
        }

        /*
          Now prepare output arrays depending on what output data type has
          been selected by the user. The arrays are only long enough to
          contain the number of points to the surface of the star. Since
          the value of the variable lastStep is the step where the pressure
          first went negative, if we create arrays of length lastStep then
          this value will be excluded, since such arrays start at index 0
          and finish at index lastStep-1.
        */

        double[] finalR = new double[lastStep];
        Curve outData =  null;
        String unitLabel = "";

        if (outputType.equals("Pressure")) {
            double[] finalP = new double[lastStep];
            for ( j = 0; j < lastStep; j++ ) {
                finalR[j] = radius[j];
                finalP[j] = p[j];
            }
            outData =  new Curve( finalR, finalP );
            unitLabel = " (Pa)";
        }
        else if (outputType.equals("Density")) {
            double[] finalRho = new double[lastStep];
            for ( j = 0; j < lastStep; j++ ) {
                finalR[j] = radius[j];
                finalRho[j] = rho[j];
            }
            outData = new Curve( finalR, finalRho );
            unitLabel = " (kg/m^3)";
        }
        else if (outputType.equals("Temperature")) {
            double[] finalT = new double[lastStep];
            for ( j = 0; j < lastStep; j++ ) {
                finalR[j] = radius[j];
                finalT[j] = Temp[j];
            }
            outData = new Curve( finalR, finalT );
            unitLabel = " (K)";
        }
        else if (outputType.equals("Mass")) {
            double[] finalM = new double[lastStep];
            for ( j = 0; j < lastStep; j++ ) {
                finalR[j] = radius[j];
                finalM[j] = mass[j];
            }
            outData = new Curve( finalR, finalM );
            unitLabel = " (kg)";
        }
        outData.setTitle(outputType);
        outData.setIndependentLabels(0,"altitude (m)");
        outData.setDependentLabels(0,outputType + unitLabel);

        output( outData );

    }
